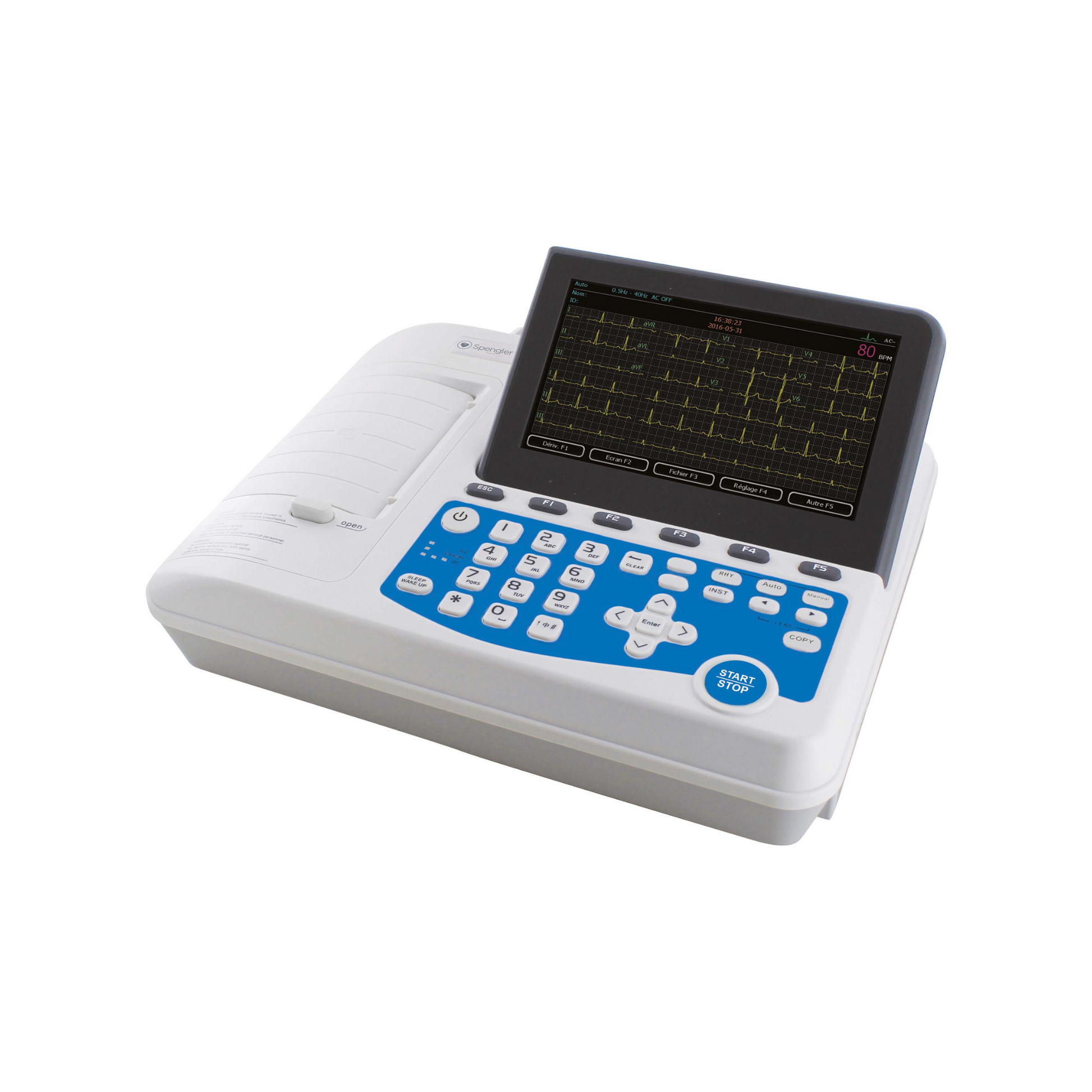

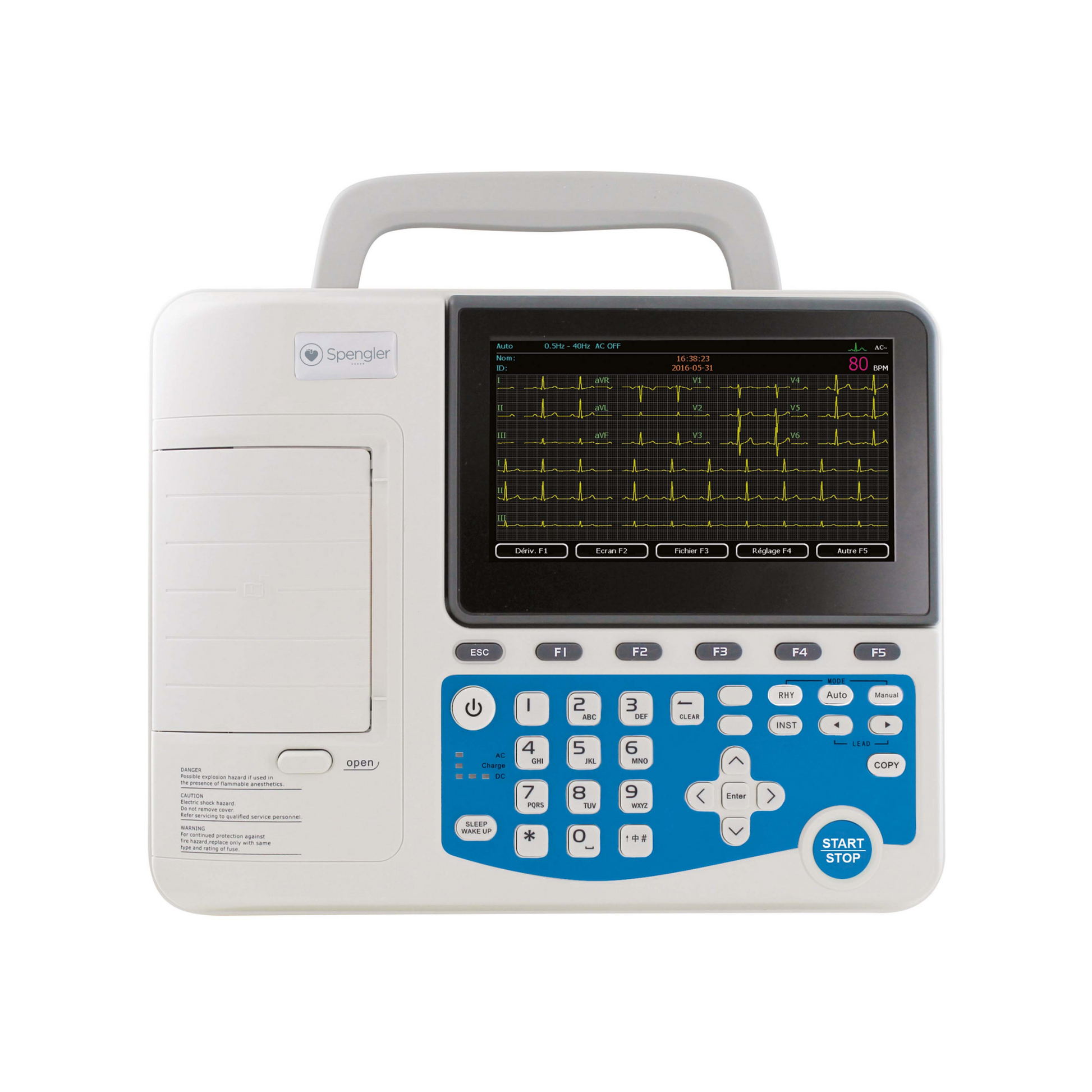

ECG 3 Track Cardiomate 3 interpretation
Acquisition of 12 simultaneous tracks visible on a 7-inch tilting color LCD screen (resolution 800 x 480 px).
10,000 ECG memory with 4GB SD card (supplied).
ECG recording and printing are triggered with just one touch.
Automatic interpretation and pacemaker detection.
Built-in protection against defibrillators.
Battery life: ±3 H (i.e. ±1080 ECG).
Carrying handle.
For roll recording paper: W. 80 mm × L. 20 m.
Comes with:
• 1 patient cable.
• 4 end electrodes (clamps).
• 6 chest electrodes (suction cups).
• 1 power cable.
• 1 roll of thermal paper.
• 1 4GB SD card.
• User manual.
General characteristics:
• Measuring range ± 5mVpp.
• Time constant ≥ 3.2s.
• Response frequency 0.05Hz~150Hz (-3dB).
• Noise attenuation < 15μVp-p.
Recording mode:
• Automatic (3CH, 1CH+1R).
• Manual (3CH, 1CH+1R, 1CH).
• Rhythm (all tracks of your choice).
• Recording speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s.
• Network, USB and SD card interface.
• Sampling frequency 1000hz per channel & 10,000Hz with pacemaker.
• EMG filter: 25 Hz/30 Hz/40 Hz.
• DFT filter: 0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/0.5 Hz/0.67 Hz/ADS.
• Low-pass filter: 75 Hz /100 Hz /150Hz.
DM Class IIa
Weight : 2.25 kg
Warranty : 2 years
Power supply : 100/240 V ~ 50/60 Hz mains or 14.8 V ~ 2200 mAh lithium-ion battery
ECG 3 Track Cardiomate 3 interpretation
Acquisition of 12 simultaneous tracks visible on a 7-inch tilting color LCD screen (resolution 800 x 480 px).
10,000 ECG memory with 4GB SD card (supplied).
ECG recording and printing are triggered with just one touch.
Automatic interpretation and pacemaker detection.
Built-in protection against defibrillators.
Battery life: ±3 H (i.e. ±1080 ECG).
Carrying handle.
For roll recording paper: W. 80 mm × L. 20 m.
Comes with:
• 1 patient cable.
• 4 end electrodes (clamps).
• 6 chest electrodes (suction cups).
• 1 power cable.
• 1 roll of thermal paper.
• 1 4GB SD card.
• User manual.
General characteristics:
• Measuring range ± 5mVpp.
• Time constant ≥ 3.2s.
• Response frequency 0.05Hz~150Hz (-3dB).
• Noise attenuation < 15μVp-p.
Recording mode:
• Automatic (3CH, 1CH+1R).
• Manual (3CH, 1CH+1R, 1CH).
• Rhythm (all tracks of your choice).
• Recording speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s.
• Network, USB and SD card interface.
• Sampling frequency 1000hz per channel & 10,000Hz with pacemaker.
• EMG filter: 25 Hz/30 Hz/40 Hz.
• DFT filter: 0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/0.5 Hz/0.67 Hz/ADS.
• Low-pass filter: 75 Hz /100 Hz /150Hz.
DM Class IIa
Weight : 2.25 kg
Warranty : 2 years
Power supply : 100/240 V ~ 50/60 Hz mains or 14.8 V ~ 2200 mAh lithium-ion battery
ECG 3 Track Cardiomat 3 Interpretation - Spengler
- Prix habituel
- 1.664,26€
- Prix soldé
- 1.664,26€
- Prix habituel
-
Prix HT. Prix TTC affichés lors de la validation de commande.
Translation missing: en.products.product.sku:125.088
